Dental High and Low Speed Handpiece Kit 2/4 Holes

Price range: 71,47 € through 347,99 €

Weight N/A
Model

,

,

Quantity

,

,

,

,

Description

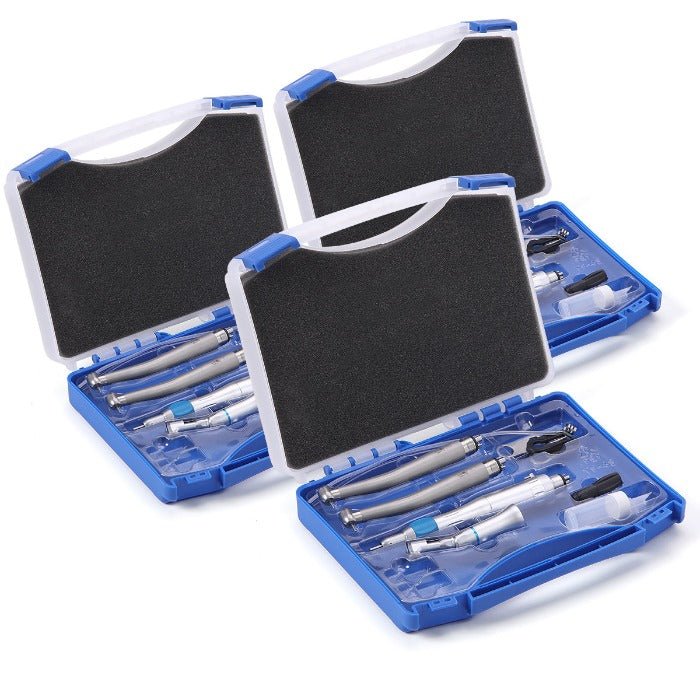

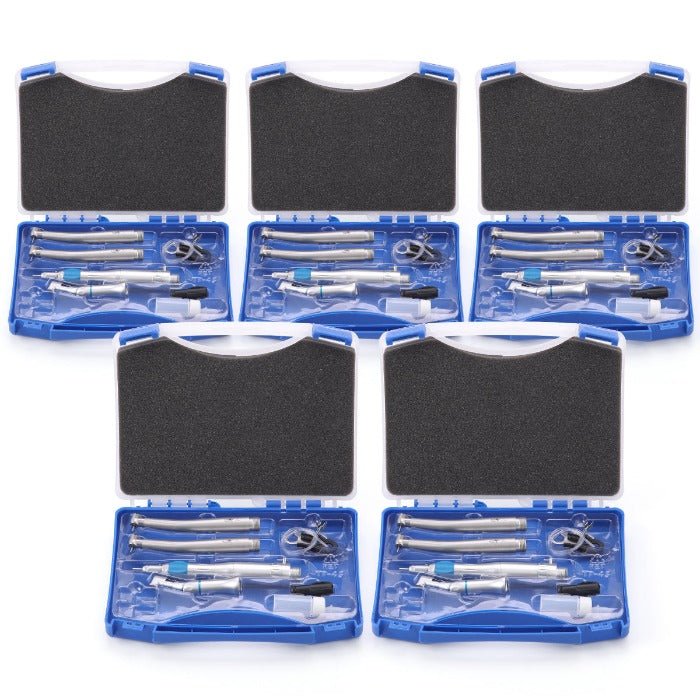

Dental High and Low Speed Handpiece Kit 2/4 Holes. High speed handpiece is standard push button type and single-way water spray. Low speed kit is E-type connector and wrench type. Precise technology, Steady, no vibration while revolving, offering a steady operation.

Low Speed Kits Features
  • E-type connector
  • Wrench type
  • Precise technology, Steady, no vibration while revolving, offering a steady operation.
  • Suitable for any E-type handpiece accords with ISO standard
  • 135°C Autoclavable, suitable for both steam and chemical autoclave

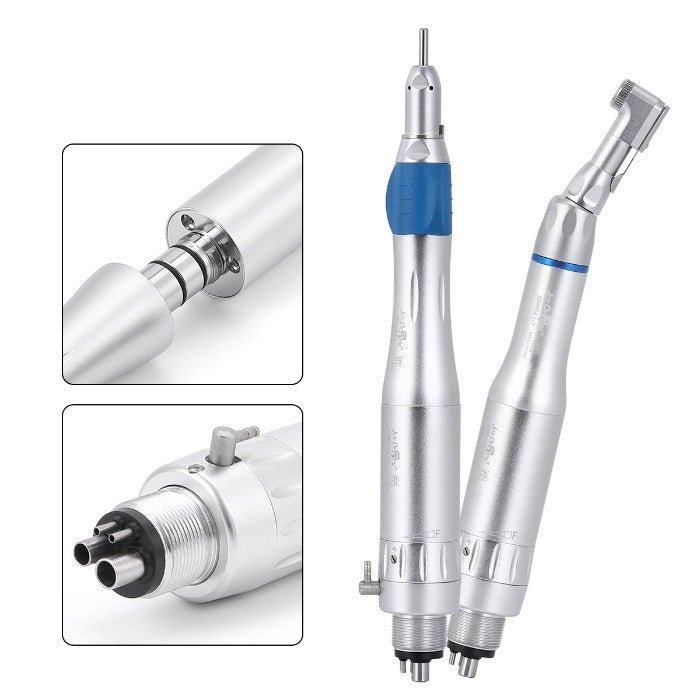

Contra angle handpiece :

  • Low Speed 22,000-27,000 rpm.
  • The shank of the instrument mounted therein is 2.35 mm.
  • Fastening of the instruments with a turning latch.
  • Autoclavable 135°C
  • For any lab or E-type motors

Straight Nosecone:

  • Working pressure: 0.3MPa.
  • 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).
  • Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise).
  •  Noise: ≤68dB
  • Air consumption: about 56L/min
  • Ratio: 1:1
  • Max speed of contra angle: 25000rpm/min.

Air Mortor:

  • Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
  • 1:1 Direct Drive
  • 2/4 Holes
  • Max speed 20,000 min-1
Low Speed Kits Specification

Air-in Pressure(kg/c㎡)

Motor Rotation(rpm

Air Wastage:(N1/min)

2.5

22,000

42

3

25,000

51
4

27,000

72

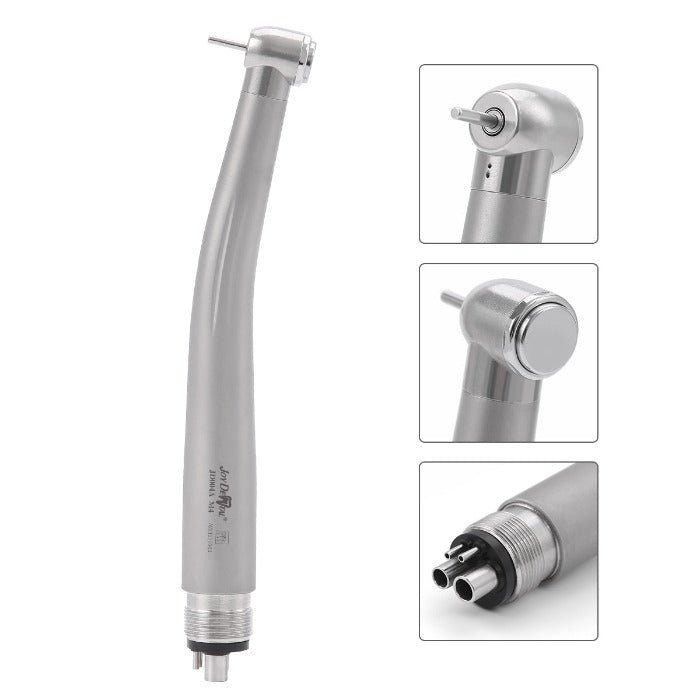

High Speed Handpiece Specification
Description:  Standard Push button type, high speed handpiece, Single-way water spray
Needle Change Type: Push button
Air Pressure: 180~250 KPa (1.8~2.5 kgf/cm2)
Water Pressure: 198Kpa (2 kg)
Rotation Speed: 370,000-420,000 rpm
Head Hight: 13.14 mm
Head Diameter: φ11.2 mm
Bur Applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
Noise: ≤70dB

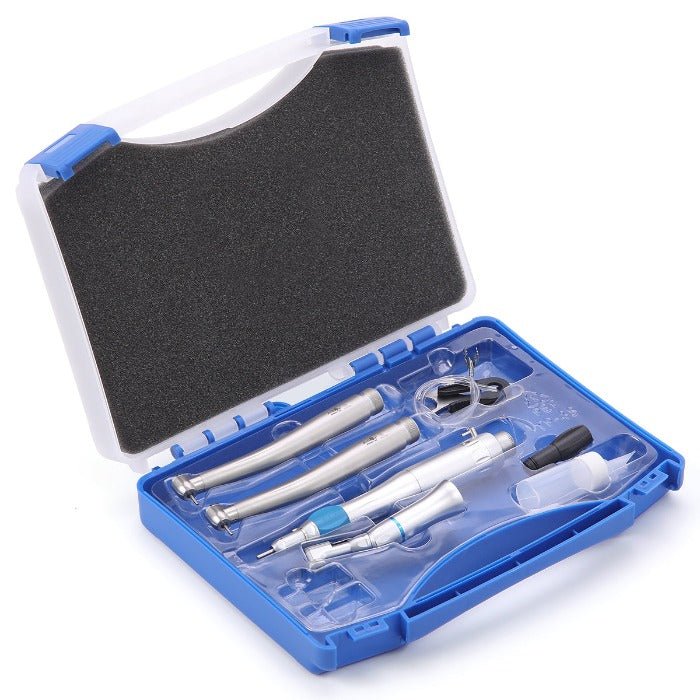

Packing List
High speed handpiece push button 2/4 Holes:  2 each
E-type air motor 2/4 Holes: 1 each
Straight nose cone 1 each
Contra Angle handpiece: 1 each
Water spray nozzle: 1 each
Oil spray nozzle: 1 each
CAP Spanner: 2
